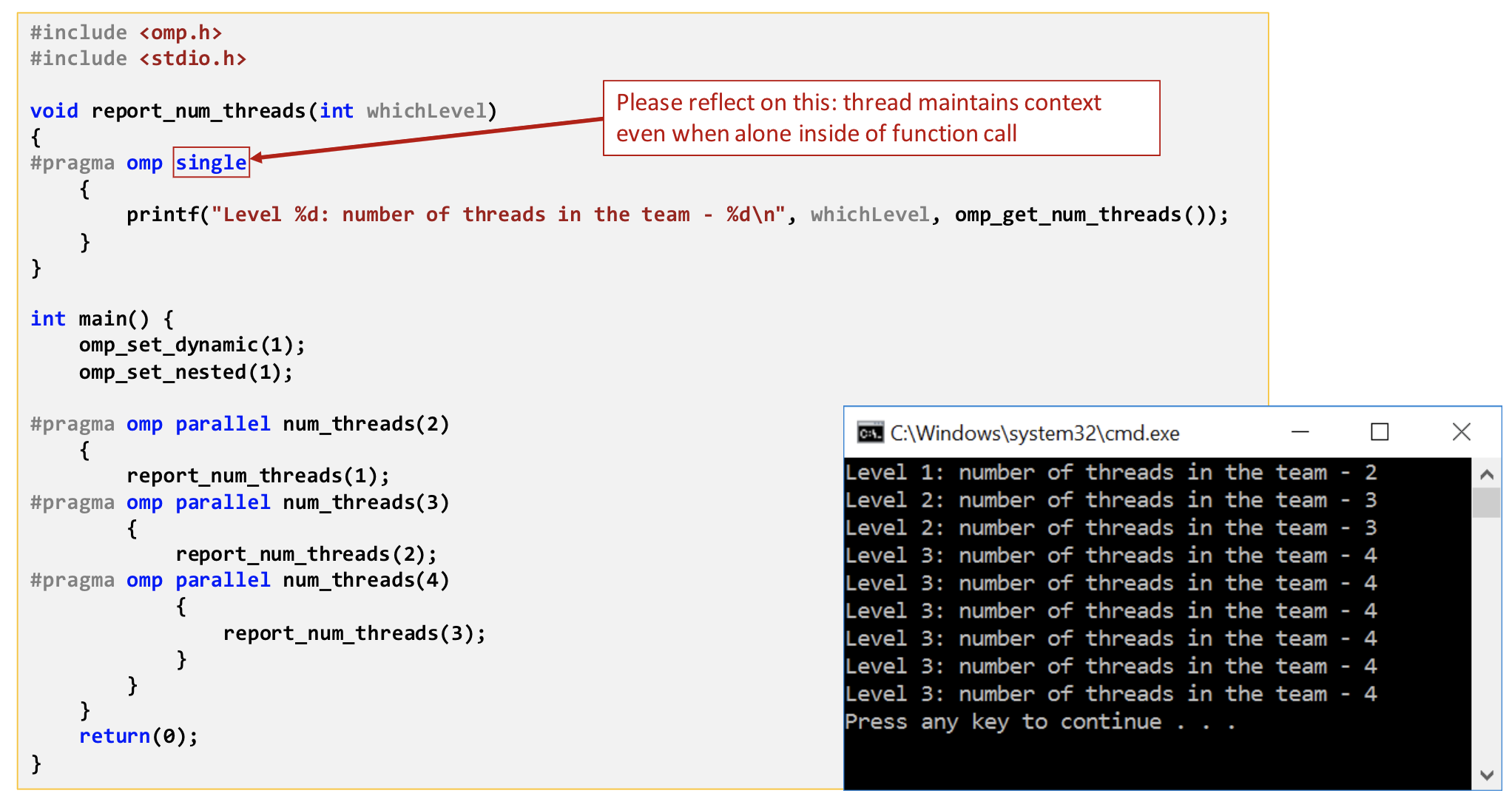

# Lecture 20: Multi-core Parallel Computing with OpenMP. Parallel Regions. ## Lecture Summary * Last time: OpenMP generalities * This time: OpenMP nuts & bolts ## OpenMP ![Compiler directives examples (the directive goes behind \`#pragma omp\`)](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWPxtwjfZnxLR5FZYs_%2FScreen%20Shot%202021-03-22%20at%2012.24.37%20PM.png?alt=media\&token=9e5c8306-07bb-41f3-bdc3-c03f6a7a9321) ![User-level run time routines](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWPyGK8qdfNVpiiy1An%2FScreen%20Shot%202021-03-22%20at%2012.26.12%20PM.png?alt=media\&token=9324cc76-94f7-43e9-abab-dca5680e613f) ![Environment variables. This helps with bypassing the run-time function calls, but using env vars does not allow for dynamic OpenMP behavior. A function call overrides an env var setting, though.](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWPzoPbfOsAB5BoHFZR%2FScreen%20Shot%202021-03-22%20at%2012.32.59%20PM.png?alt=media\&token=4cc76663-b1c6-4d8e-9beb-002679680e0b) * OpenMP: portable and scalable model for shared memory parallel applications * No need to dive deep and work with POSIX pthreads * Under the hood, the compiler translates OpenMPfunctions and directives to pthread calls * Structured block and OpenMP construct are the two sides of the “parallel region” coin * In a structured block, the only "branches" allowed are exit() function calls. There is an implicit barrier after each structured block where threads wait on each other. ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ3xI0kcbZyEtNFq20%2FScreen%20Shot%202021-03-22%20at%2012.55.23%20PM.png?alt=media\&token=1adcfa60-c26e-40f1-ac54-55b3fdceed31) ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ4KyzoRLHdvtw2S0e%2FScreen%20Shot%202021-03-22%20at%2012.57.03%20PM.png?alt=media\&token=1283fb53-6bfe-4439-9adc-11c7876b14e8) ### Nested Parallelism ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ4wpwOB2h9VcxWNQG%2FScreen%20Shot%202021-03-22%20at%2012.59.46%20PM.png?alt=media\&token=c92fad9d-60af-4c98-8dc2-a8eb1e015759) * The nested parallelism behavior can be controlled by using the OpenMP API * The single directive identifies a section of the code that must be run by a single thread * The difference between single and master is that in single, the code is executed by whichever thread reaches the region first * Another diff is that for single, there is an implicit barrier upon completion of the region ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ6O-K0uwovOYdkqGB%2FScreen%20Shot%202021-03-22%20at%201.06.02%20PM.png?alt=media\&token=6fe05aea-5bd2-4f67-b097-06d1c8ec2c7a) ### Work Sharing * Work sharing is a general term used in OpenMP to describe the distribution of work across threads * The three main constructs for automatic work division are: * omp for * omp sections * omp task ### omp for ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ7rSOacz3mKGhmAWW%2FScreen%20Shot%202021-03-22%20at%201.12.29%20PM.png?alt=media\&token=6b69afc1-b196-483f-85bb-883cb417195a) * A #pragma omp for inside a #pragma omp parallel is equivalent to #pragma omp parallel for * Most OpenMP implementations use default block partitioning, where each thread is assigned roughly n/thread\_count iterations. This may lead to load imbalance if the work per iteration varies * The schedule clause comes to the rescue! * Usage example: #pragma omp parallel for schedule(static, 8) ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ9Op2h05CJX-260_A%2FScreen%20Shot%202021-03-22%20at%201.19.13%20PM.png?alt=media\&token=0b770d70-934b-42b9-9ac5-58c5d8247e6f) ![Effects of different schedules, assuming 3 threads](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ9lQXTJC4JTmbSkAx%2FScreen%20Shot%202021-03-22%20at%201.20.49%20PM.png?alt=media\&token=0aa1dc01-ea96-4775-943d-d865dc4a41f0) ![Choosing a schedule](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQ9un8IUUZ2x-N6Amt%2FScreen%20Shot%202021-03-22%20at%201.21.28%20PM.png?alt=media\&token=825eb673-7b02-417e-8e73-24f41e384c5e) * OpenMP will only parallelize for loops that are in canonical form. Counterintuitive behavior may happen * The collapse clause supports collapsing the embedded loops into one uber loop * For example, if the outer loop has 10 iters, the inner loop has 10^7 iters, and we have 32 threads: parallelizing the outer loop is bad (10<32), parallelizing the inner loop is good, but we can do better using collapse ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQBmo703WkJX7H36YC%2FScreen%20Shot%202021-03-22%20at%201.29.16%20PM.png?alt=media\&token=df0433a5-1761-4d22-b33b-0c8c78fde6a9) ### omp sections ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQC0wYU64VC7X_6cjq%2FScreen%20Shot%202021-03-22%20at%201.30.42%20PM.png?alt=media\&token=c36b11a6-ed10-4cff-a080-ef425dd7ef48) ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQCApH6GluvFoFZZLA%2FScreen%20Shot%202021-03-22%20at%201.31.20%20PM.png?alt=media\&token=896d4c2a-14ac-4cf6-b53e-a938cec57978) ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQCaCEH-vq5kTPLx-f%2FScreen%20Shot%202021-03-22%20at%201.33.09%20PM.png?alt=media\&token=9436e2ac-6b94-4400-9cfa-05304b89211d) ![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MWPw-i2II2NYWBtAkg4%2F-MWQCcvbiRaXqkfBcdvx%2FScreen%20Shot%202021-03-22%20at%201.33.20%20PM.png?alt=media\&token=c5b12c7e-2387-41c1-acf0-1b9be305f60f)
