# Lecture 26: MPI Parallel Programming General Introduction. Point-to-Point Communication.

## Lecture Summary

* Last time
  * Wrapped up “Critical thinking” segment. Went through a case study, saw more than 100X speed up
    * No function-call blockers; loop unrolling & re-association; dropped in the wide-register vectorization
  * Started discussion about parallel computing via message passing (multi-process parallel computing)
    * Covered the hardware aspects related to HPC
* Today
  * HPC via MPI: discuss the basic ideas/paradigms
  * MPI point-to-point communication

## MPI

### Introduction to message passing and MPI

* CUDA: A kernel (a small snippet of code) is run by all threads spawned via an execution configuration
* OpenMP: All threads execute an omp parallel region, work sharing
* MPI: The entire code is executed in parallel by all processses

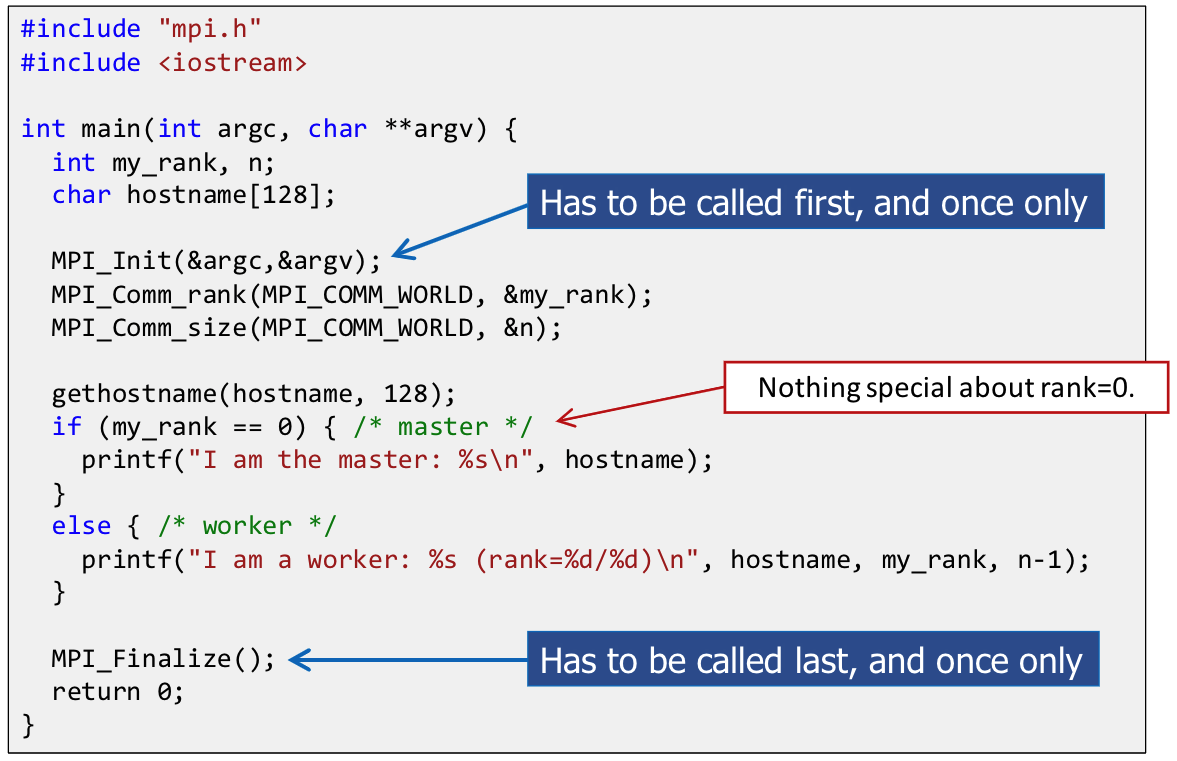

![Hello world example](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3gd3GKGnXGim_NkrY%2FScreen%20Shot%202021-03-30%20at%202.53.16%20PM.png?alt=media\&token=ea0ad161-7bd6-481d-9c51-a017d0d879ab)

* MPI does branching based on the process rank
  * Very similar to GPU computing, where one thread does work based on its thread index
  * Very similar to OpenMP function omp\_get\_thread\_num()
* Each MPI process has its own program counter and virtual address space
  * The variables of each program have the same name but live in different virtual memories and assume different values

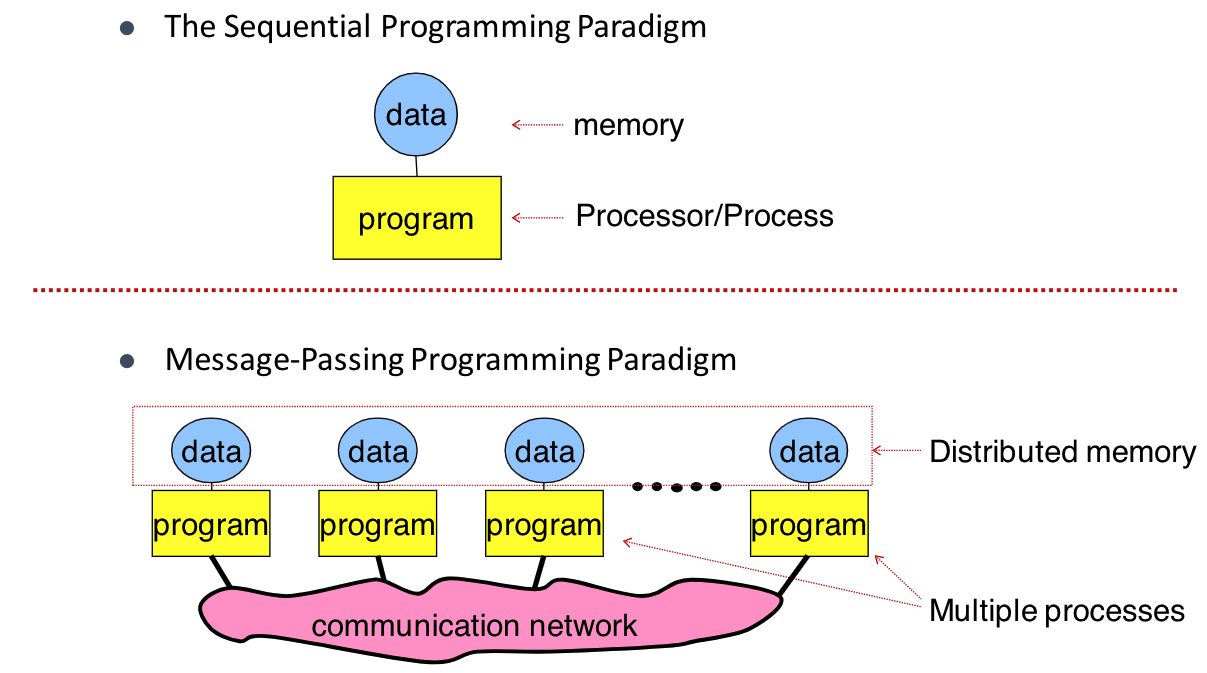

* MPI can be used whenever it is possible for processes to exchange messages:
  * Distributed memory systems
  * Network of workstations
  * One workstation with many cores
    * Data is passed through the main memory instead of a network
    * Different ranks share the same physical memory, but they are each tied to separate virtual memory spaces

![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3kYdc8uvhnJ4pv7Gj%2FScreen%20Shot%202021-03-30%20at%203.10.19%20PM.png?alt=media\&token=dfd018b8-d502-4e11-8242-bc1c1bc1fb4b)

![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3hv6xDbFeVVP5Xegd%2FScreen%20Shot%202021-03-30%20at%202.58.49%20PM.png?alt=media\&token=8cc42b8f-4026-47e6-89ca-d39675759fca)

![MPI vs. OpenMP](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3l2r_nkd6Wd9V93Em%2FScreen%20Shot%202021-03-30%20at%203.12.33%20PM.png?alt=media\&token=284f3a85-decd-4d3c-9969-83b4b146342a)

![MPI vs. CUDA](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3l9crH6uWsXn6vYnF%2FScreen%20Shot%202021-03-30%20at%203.13.01%20PM.png?alt=media\&token=c1bce520-b877-4414-8278-8ff5cafb673e)

### Point-to-Point (P2P) Communication

![](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3skqX-QnLudR_KeN1%2FScreen%20Shot%202021-03-30%20at%203.46.14%20PM.png?alt=media\&token=22ae4896-9d55-44e9-a76f-9a24200676c6)

* P2P: Simplest form of message passing communication
* One process sends a message to another process (MPI\_*Send, MPI\_*Recv)
* `int MPI_Send(void *buf, int count, MPI_Datatype datatype, int dst, int tag, MPI_Comm comm)`
  * buf: starting point of the message with count elements, each described with datatype
  * dst: rank of the destination process within the comm communicator
  * tag: used to distinguish between different messages
* `int MPI_Send(void buf, int count, MPI_Datatype datatype, int dest, int tag, MPI_Comm comm, MPI_Status status)`
  * Envelope information is returned in an MPI\_Status object
* A custom communicator can be created using `MPI_Comm_create(MPI_COMM_WORLD, new_group, &MY_COMM_WORLD);`
* MPI data types and their C counterparts: see table below
* The order of messages is preserved, i.e. messages do not overtake each other
* Receiver can wildcard to received from any source/tag: MPI\_ANY\_SOURCE/MPI\_ANY\_TAG
* For a communication to succeed:
  * Sender must specify a valid destination rank
  * Receiver must specify a valid source rank
  * The communicator must be the same
  * Tags must match
  * Message data types must match
  * Receiver's buffer must be large enough
* MPI\_Send and MPI\_Recv are blocking: when a process sends, it does not stop until another process receives
* Eager mode vs. Rendezvous mode
  * Eager mode: Small messages, the content of the buffer is picked up right away by the MPI runtime
  * Rendezvous mode: Large amount of data, the sender function waits for the receiver to post a receive before the runtime facilitates the sending of the actual data of the message

![MPI data types](https://1313833672-files.gitbook.io/~/files/v0/b/gitbook-legacy-files/o/assets%2F-MMTslgmrrtRXvxD2lk9%2F-MX3fE2dj6S4lHpZZh5K%2F-MX3tJjjY55EuLy0SLU_%2FScreen%20Shot%202021-03-30%20at%203.48.40%20PM.png?alt=media\&token=047edc85-1f89-4dce-80e5-1ac226d3ac52)
